GRP Structural Stair Treads
Heavy Duty GRP Structural Stair Treads offer a quick and easy to install, structural step replacement device for external staircase renewal and individual tread replacement projects.
Commonly known as the "SureGRP Structread" the innovative product is designed to provide a long-term, zero maintenance system to replace traditional wooden stair treads which are due for renewal.
The heavy-duty product is made from a hardwearing GRP (Glass-Reinforced-Plastic) material and provides a long term system which is robust, weather-resistant, zero maintenance and easy to install.
Structural Stair Products are designed for staircases for overbridges, and in particular for network rail stations.
SureGRP have designed and manufactured bespoke Structural Stair Treads for many stations nationwide with Network Rail acceptance and approval gained.
Designed for Staircase Replacement Projects - Approved & Suitable for Network Rail Staircase Renewal Projects.
Load Bearing Product - Spanning up to 2100mm. (65mm and 90mm Thickness Options).
DDA (Disability-Discrimination-Act) Compliant - Featuring an Enhanced Non-Slip Surface Finish & High-Visual Guidance Sightline.
GRP (Glass-Reinforced-Plastic) Material - Hardwearing & Durable. Corrosion, Weather-Proof and Wear-Resistant Product Suitable to withstand even the harshest environments.
Bespoke Manufacture - SureGRP design and manufacture bespoke products for the rail industry in the United Kingdom.
Zero Maintenance - Designed for long-term use without the need for renewal.
Non-Conductive - Suitable for areas close to electrical enviroments such as trackside steps and railway footbridges.
Quick & Easy to Install - Hassle-Free Single Piece Installation.
Contact Our Customer Service Team via telephone on 01952 583 055. Email us at info@suregrip.co.uk.
GRP (Glass-Reinforced-Plastic) Structural Stair Treads offer a load-bearing step replacement system for staircase renewal projects across footbridges and trackside staircases.
Heavy Duty Structural GRP Stair Treads, also known as the "Structread" is designed to provide a zero-maintenance alternative to traditional load-bearing wooden stair treads.
The innovative product offers an ideal solution for renewal or individual tread replacement projects, which is commonly used across network rail footbridges for steps due for renewal.
Our product has been accepted and approved by Network Rail. It has been installed in a number of train stations nationwide.
We have also worked with British Airways to supply and install our structural stair tread for passenger staircases.
SureGRP design, manufacture and install bespoke GRP Anti-Slip Surfaces - Manufactured Within The UK In Accordance With ISO 9001:2015.
Product Specification
Span: Up to 2.1m (2100mm).
Thickness: 65mm & 90mm Thicknesses.
Profiles: Square Nosed & Rake-Back Profiles Available.
DDA Compliant: Featuring an Enhanced Anti-Slip Surface Finish & High-Visual Guidance Sightline.
Product Features
Enhanced Non-Slip Surface Finish.
Featuring the SureGrip Quartz-Grit Anti-Slip Surface Finish, the Structread classes as an enhanced non-slip surface finish, providing a safe and secure slip resistant surface underfoot which is twice the industry standard.
High-Visual Guidance Sightline.
The product features a contrasting high-visual nosing which acts as a guidance sightline to assist partially sighted pedestrians whilst using the stairs.
Load Bearing Characteristics.
Structreads offer a load-bearing step replacement system which is designed to span up to 2100mm. The product has passed extensive load-testing trials and testing reports are available on request.
Load testing of the panel 1500mm x 320mm was undertaken and loaded with a point load at the centre.
The load test was undertaken to failure which was 3.5 Tonne ( 35K/N ). We note that the specification in prefabricated systems is of sustaining a point load of ½ a Tonne ( 5K/N ).
Hardwearing & Robust GRP Material.
Designed to withstand the toughest of conditions, a GRP (Glass-Reinforced Plastic) product is robust, durable and will last for years to come, making the product ideal for external enviroments.
Benefits of Using GRP (Glass-Reinforced) Plastic
Zero Maintenance.
Non-Conductive.
Corrosion & Chemical Resistant.
Hardwearing & Durable.
Long Term Product.
Designed to withstand the toughest of environments, 100% weatherpoof material.
Technical Specification
Sizes: Manufactured to your requirements (Up to 3000mm).
Span: Up to 2.1m (2100mm).
Thickness: 65mm & 90mm Thicknesses.
Profiles: Square Nosed & Rake-Back Profiles Available.
Design Specification

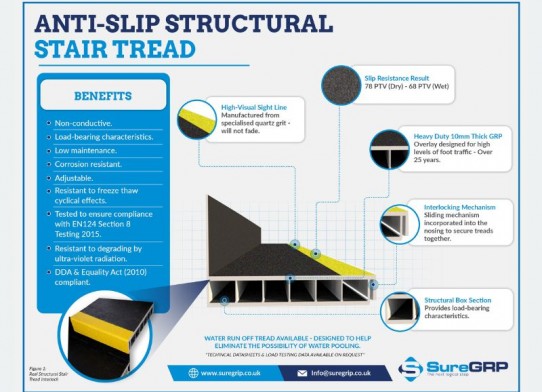

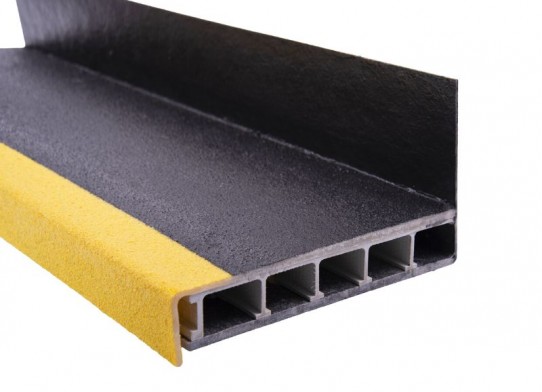

The SureGRP Structural Stair Tread is a pultruded glass-reinforced-plastic three-piece construction which features a built-in interlocking riser which can be removed if required.
Structreads are designed to be universally quick and easy to install.
The bespoke, modular design is uniquely manufactured to your exact requirements and this allows the servicer enormous flexibility both at the design stage and on-site.
Design Composition
​SureGRP Structural Stair Treads are available in 65mm or 90mm thicknesses.
Manufactured from a pultruded 40mm core section, with a 10mm GRP plate for the underside rear riser section (Up to 170mm) and an additional 10mm GRP Plate with a fabricated nosing which is integrated to the front.
An abrasive quartz-grit is encapsulated into the top walkway surface, to provide an abrasive, durable, enhanced non-slip surface finish.
The stair tread system is designed to adapt to the two most usual timber stair component sizes in common usage for network rail footbridges, which are 75mm and 100mm.
The system provides a 65mm interlocking adjustment from tread to tread, meaning replacement of degraded timber is easy.
We manufacture the product with 10mm to 6mm profile on the top section (from front to back) to provide a sloped finish to disperse water for drainage and avoid water-build up.
Load Bearing Characteristics.
SureGRP structural stair treads have the ability to span up to 2.1m clear open span, achieving the required 5kN/m2 at L/300 deflection which means that additional supports can be avoided in most situations.
Fixing Methods.
The product is fixed together using stainless steel clamping bars underneath fixed to pins using stainless steel domed head nuts.
